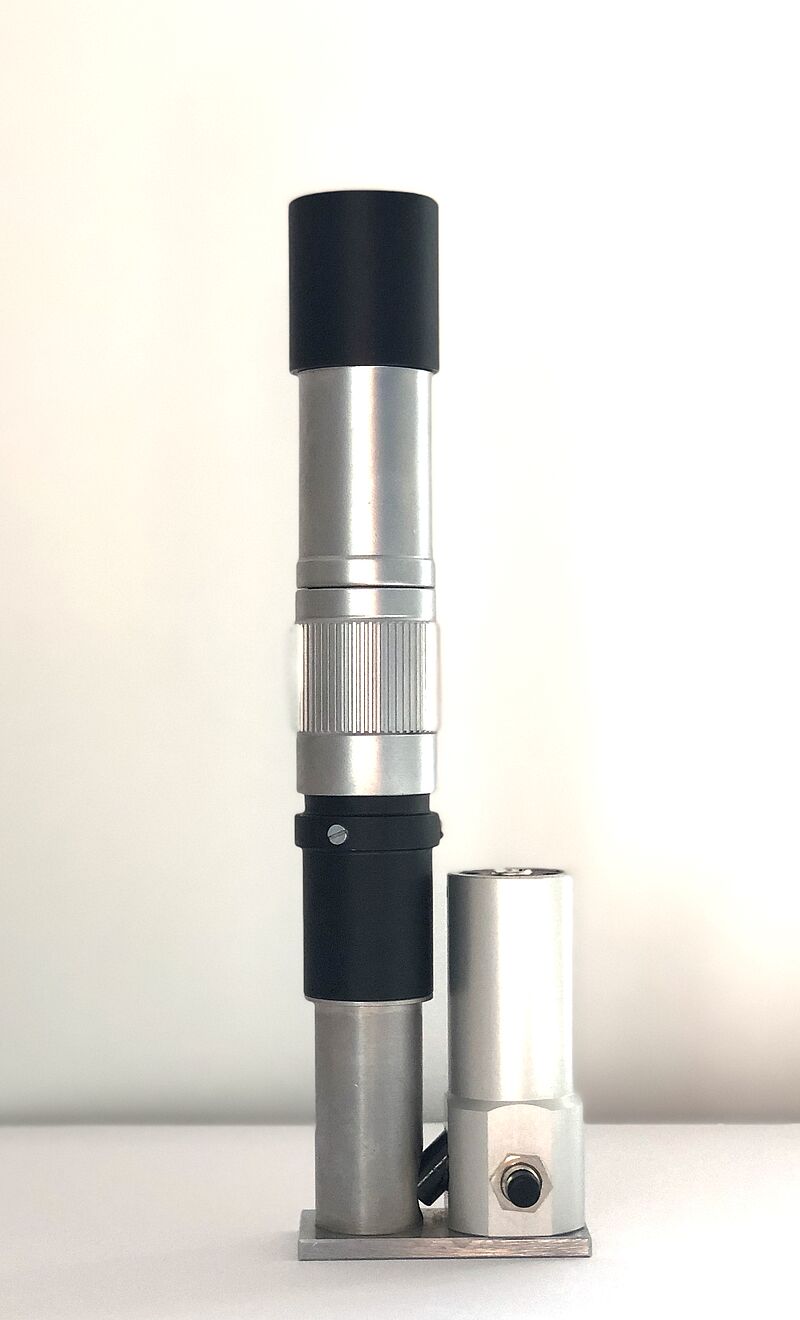

ZANGER POCKET MEASURING MICROSCOPE











Technical Specifications:

Design:

Matte black & matte chromium-finish (adjustment screw)

Dimensions (WxHxD):

53 x 170 x 25 (in mm)

Zoom:

20 - 100 times

Weight:

380 gm

Power Supply:

NiMH-Akku, 70 mAh





Application areas:

Hardness Test - Measuring the diameter of the identation

Color Monitor Service - Adjusting the color purity and calibration

Dermatology - Examining sking pigment changes and pigmentation diameter. The glass pane adapter is used for a better representation



Standard versions with case and power supply

Item No. 21350

20 times

10xWF eyepiece

100 Ts. = 10 mm

1Ts.=0,1 mm

Item No. 21835

40 times

10xWF eyepiece

500 Ts. = 5 mm

1Ts.=0,01 mm

Item No. 21217

60 times

10xWF eyepiece

100 Ts. = 2 mm,

1Ts.=0,02 mm

Item No. 21836

60 times

10xWF eyepiece

200 Ts. = 2 mm,

1Ts.=0,01 mm

Item No. 21893

100 times

10xWF eyepiece

100 Ts. = 1 mm,

1Ts.=0,01 mm

Item No. 21224

100 times

10xWF eyepiece

200 Ts. = 1 mm,

1Ts.=0,005 mm



Description:

The pocket microscope manufactured by us is available in different versions. With / without incident light and with DIN Huygens or DIN measuring eyepiece. The measuring plate can be designed as per customer requirements. This device can magnify between 20x-100x. Only the best quality optics are used.

Without the lighting, the device can be used as an add-on microscope to machines. In order to enable location-independent use, this has been equipped with battery-operated LED lighting. The all-metal version has a stable construction and is suitable for continuous use in workshops and laboratories. A carrying case, charger and power supply unit will be included in the packaging.

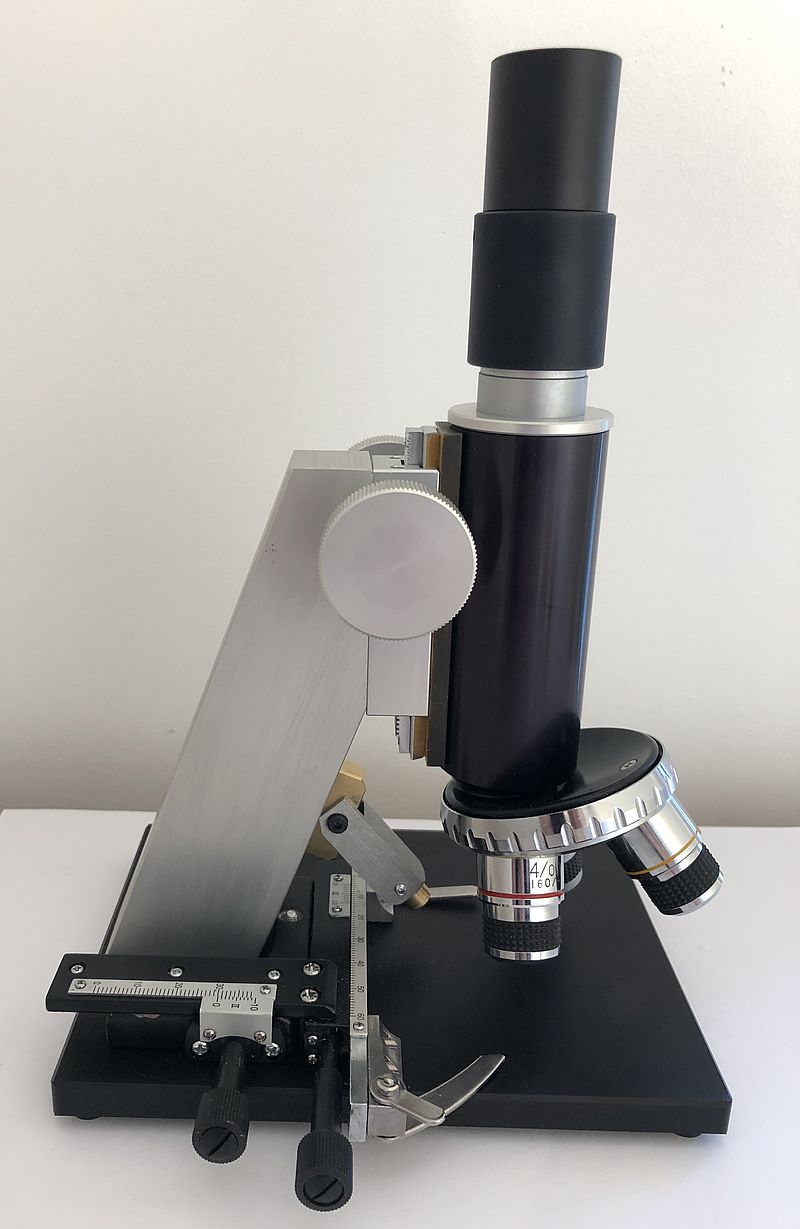

ZANGER MEASURING MICROSCOPE MINOR


Item Nos.- 21010 and 21554


Technical Specifications:

Tube Length: 170 mm
Objective Length: 37 mm
Objective Thread: DIN IW 20,2 x 36 gn
Total Height: 25 cm
Weight: 2000 gm

Comparison

Optical Equipment:

Item No. 21010

Item No. 21554

Eyepieces:

10x WF Micrometer 10x WF Micrometer

Objective Lenses:

4x, 10x, 20x

4x, 10x, 20x

Adjustment for 10x Objective:

1 division = 0.01 mm

None

Available Accessories:



Art.-Nr.21009

Carrying case

Art.-Nr.21022

C-Mount Camera Adapter



Description

Stable and stable design. The tube is adjusted by a smooth coarse and fine drive, with which perfect focusing is guaranteed even at 200x magnification.
The built-in LED lighting with plug-in power supply ensures excellent image brightness even at maximum magnification.
Equipped with a 3-part knurled turret and attachable KOPUL cross table.
With the enclosed measuring card you have the possibility with the micrometer eyepiece to determine the object size directly through all 3 objectives. Further model variants with C-mount connection for CCD cameras or CMOS cameras as well as accessories and accessories such as carrying cases or microscope micrometers are available on request.

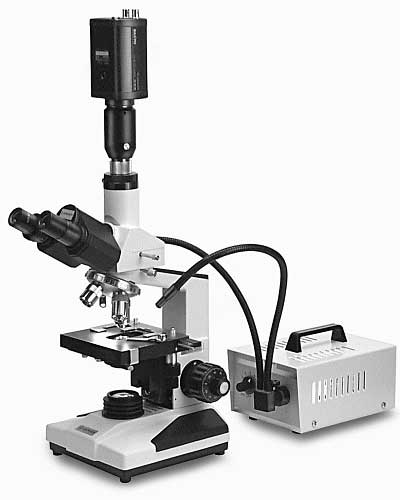

ZANGER MICROSCOPE NK-KKE / HL FOR UNIVERSITIES, SCHOOLS AND LABORATORIES

Variants:

Item No. 21716 Binocular
Item No. 21853 Binocular Plan
Item No. 21682 Trinocular
Item No. 21681 Trinocular Plan

Technical Specifications:

Tube Length: 160 mm
Lens construction length: 45 mm
Objective Thread: DIN IW 20,2 x 36 gn
Total Height: 360 mm
Weight: 5300 gm

Details

Eyepieces:

10x + 16x wide field (pair), also for spectacled users Item No. 21427

Lenses:

4x

Item No. 21295



10x

Item No. 21157



40x springy

Item No. 21174



100x oil, springy

Item No. 21401






Included Supply:

Dust cover, Immersion oil, Blue filter and Matt filter









Available Accessories:





Item No. 21099

Cold light lighting 100W, 230V, two-armed

Item No. 21896

C-Mount Adapter 96% bei ½"

Item No. 21243

C-mount adapter with measuring eyepiece holder

Item No. 21321

Camera Adapter C-Mount-T2



Description

Binocular oblique view, inclined 30 °, with one-sided diopter adjustment. 4-part objective nosepiece, ball-bearing. Cross table with coaxial drive 125 x 135 mm, ball bearing. Coaxial coarse fine adjustment with ball-bearing table support. Abbe condenser NA 1.25, centerable with iris diaphragm and filter holder. Height adjustable by means of a drive on both sides. Infinitely adjustable halogen lighting according to Köhler 6V, 20W, built-in with transformer for 230V mains voltage in the base.

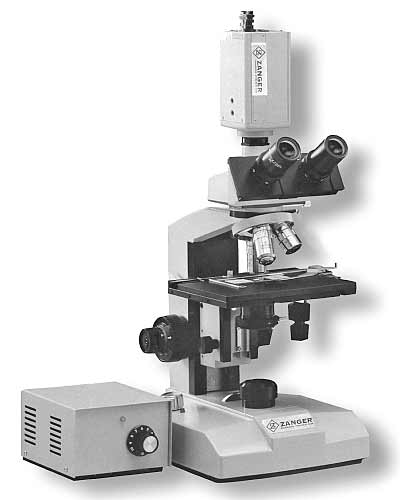

ZANGER REFLECTED LIGHT MICROSCOPE OPTIMAT KKE / HL / AL FOR RESEARCH AND LABORATORY

Details:

Item No. 21123 Binocular
Item No. 21129 Trinocular

Technical Specifications:

Tube Length: 160 mm
Lens Construction Length: 42 mm
Lens Thread: DIN IW 20,2 x 36 gn
Total Height: 410 mm
Weight: 6000 gm

Details

Optical Equipment:







Eyepieces:



10x Weitfeld (Paar), auch für Brillenträger

Art.-Nr. 21427

Objective Lenses:



4x, 10x, 40x federnd semiplan


Incident light intermediate tube




Halogen lighting (Koehler):

6V, 30 W



Included in the Box:







Dust cover









Immersion oil









Matt filter, blue filter, 2POL filter









operation manual














Available Accessories:




Item No. 21099     Cold light lighting 100W, 230V, two-armed

Item No. 21896

    C-Mount Adapter 96% bei ½"

Item No. 21243

    C-mount adapter with measuring eyepiece holder

Item No. 21321



Camera adapter C-Mount-T2



Description

Binocular or triocular angled viewing angle 30 ° with diopter adjustment on both sides. The triocular attachment is prepared for the connection of a photo or video camera.
Incident light intermediate tube with 6V / 30W halogen lighting according to Köhler and external transformer for 230V mains voltage. With the enclosed POL filter, it is possible to work in polarized incident light.
The 5-part objective nosepiece has ball bearings and is internally locked. Ball-bearing, coaxially driven cross table (170mm x 140mm). Travel 80 x 52mm with 0.1mm graduation on the drive buttons. Coaxial coarse fine adjustment with ball-bearing table support. 1 division on the fine adjustment knob corresponds to 2.5µ. Height-adjustable Abbe condenser NA 1.25, centerable with iris diaphragm and filter holder as well as drive buttons on both sides. Köhler halogen lighting 6V 30W, for transmitted light, with continuously adjustable brightness and built-in transformer for 230V mains voltage in the base.

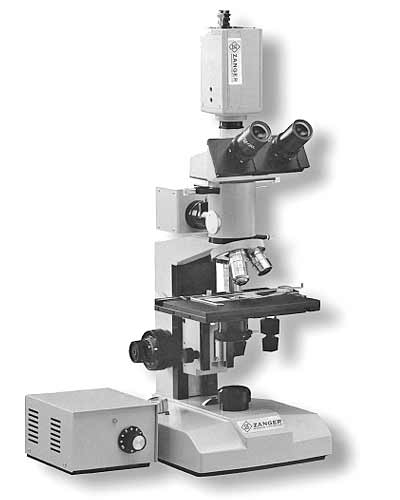

TRANSMISSION MICROSCOPE OPTIMAT KKE / HL FOR RESEARCH AND LABORATORY

Executions:

Item No. 21081 binoculars
Item No. 21097 trinocular
Item No. 21191 binocular PH
Item No. 21564 trinocular PH
Item No. 21565 binocular Pol
Item No. 21566 trinocular Pol

Technical specifications:

Tube length: 160 mm
Lens construction length:   45 mm
Lens thread: DIN IW 20.2 x 36 gn
Total height: 410 mm
Weight: 5800 gm

Details

Eyepieces:

10x wide field (pair), also for glasses wearers

Item No. 21427

Lenses:

4x

Item No. 21295



10x

Item No. 21157



40x springy

Item No. 21174



100x oil, springy

Item No. 21401







included supply:





Dust cover





Immersion oil





Blue filter





operation manual











available accessories:





Art.No.21099

Cold light lighting 100W, 230V, two-armed



Art.No.21896

C-Mount Adapter 96% bei ½"



Art.No.21243

C-mount adapter with measuring eyepiece holder



Art.No.21321

Camera adapter C-Mount-T2



Description

Binocular angled viewer, inclined at 30 °, with diopter adjustment on both sides. 5-part objective nosepiece, ball-bearing. Cross table with coaxial drive 120x140mm, ball bearing. Coaxial coarse fine adjustment with ball-bearing table guide. Abbe condenser NA 1.25, centerable with iris diaphragm and filter holder. Height adjustable by means of a drive on both sides. Infinitely adjustable halogen lighting according to Köhler 6V, 30W, built-in with transformer in the base for 230V.

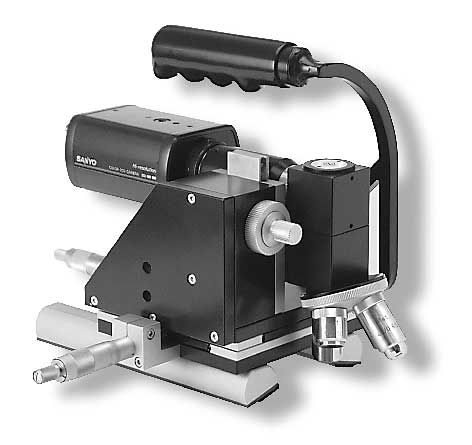

DZAM REFLECTED LIGHT MICROSCOPE FOR MATERIAL CONTROL ON CYLINDER AND PIPE WALLS

Item No. 21572

Technical Specifications
  Weight: 6.3 kg
  Dimensions: ca. 180 x 180 x 160 mm
  Hub: 25 mm
  Focussing: coaxially operated coarse fine drive
  Workpiece holder: Ø from 20 cm
  Cross table, x / y adjustment:
  +/- 10 mm   0.01 mm / division
  Magnification with 17 "monitor:
  Lens 5: 1 290 times
  Lens 10: 1 695 times
  Lens 20: 1 1230 times

Details

Item No. 21278

Fixed lens 20: 1 Metal

Item No. 21272

Objective nosepiece with 5: 1 and 20: 1 metal

Item No. 21583

Objective nosepiece with 10: 1 and 20: 1 metal



Description

This reflected light microscope has been specially developed for checking printing cylinders. Due to its compact design, it can be used in a variety of ways on simply curved material surfaces from a radius of 10 cm. The rubber-coated runners give the microscope sufficient support to prevent it sliding off by itself.
The microscope is mounted on a cross table, which is moved in both directions by means of micrometer spindles. This enables the section to be viewed or measured to be set very sensitively. There is also the option of fading in a micrometer or crosshair micrometer. The microscope can be supplied with a high-resolution CMOS camera for black and white or color reproduction. In addition, the device can be equipped with a device for depth measurement using an incremental encoder and subsequent evaluation using a PC.

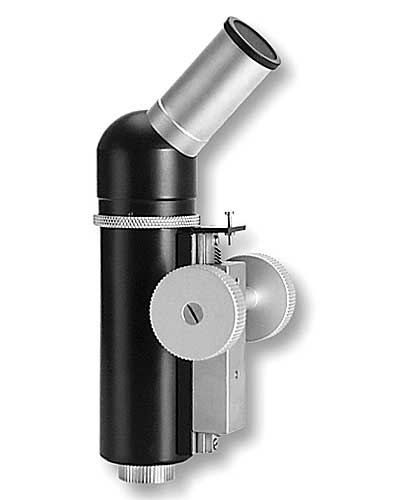

ZANGER SYSTEM MICROSCOPE 38 TUBE HANDLE

Item No. 21277 Tube guide
Item No. 21048 Monucular oblique view

Technical specifications:
Tube length with socket: 170 mm
Tube diameter: 38 mm
Connection thread above: W 35 x 40 gn
Lens thread: DIN IW 20.2 x 36 gn
Weight: 150 gm

Ausführungen

Art.-Nr. 21470

38er Tubusführung

Art.-Nr. 21277

38er Tubusführung mit Stop





Lieferbare Systemteile:



Art.-Nr. 21695

gerader Okularstutzen

Art.-Nr. 21048

monukularer Schrägeinblick

Art.-Nr. 21694

C-Mount Adapter

Art.-Nr. 21022

Kamerastutzen für geraden Okularstutzen



Beschreibung

Dieses Anbaumikroskop ist von uns so ausgelegt, dass es für verschiedene spezielle Nutzungsbereiche eingesetzt werden kann. Durch die unterschiedlichen Aufsätze, wie z.B. gerader Okularstutzen, monukularer Schrägeinblick, C-Mount Kamerastutzen oder auch entsprechende Objektivrevolver, ist eine individuelle Zusammenstellung möglich. Objektive und Okulare gehören nicht zum Lieferumfang.

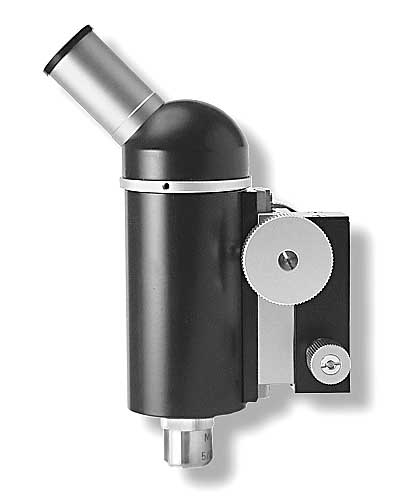

ZANGER SYSTEM MICROSCOPE 50 TUBE HANDLE

Item No. 21324 Tube guide with fine drive
Item No. 21396 Monucular oblique view

Technical specifications:
Tube length with socket: 170 mm
Tube diameter: 50 mm
Connection thread above: W 46,5 x 36 gn
Lens thread: DIN IW 20.2 x 36 gn
Weight: 570 gm

Details

Item No. 21472

50 mm tube guide with monocular angled viewing

Item No. 21324

50 tube guide with fine drive





available system parts:



Item No. 21426

straight eyepiece socket

Item No. 21396

monucular oblique view

Item No. 21287

Incident light intermediate tube (ALZT)

Item No. 21120

binocular angled view 45 °

Item No. 21286

trinocular angled viewing 30 °

Item No. 21022

C-mount socket for eyepiece socket

Item No. 21696

straight eyepiece socket for ALZT

Item No. 21489

monucular angled view for ALZT

Item No. 21473

binocular angled view 30 ° for ALZT

Item No. 21322

trinocular angled view 30 ° for ALZT







Description

This system microscope offers even more diverse application possibilities than our 38 system . With this version, it is possible to equip the tube with an additional fine drive or to insert an incident light intermediate tube (ALZT) into the attachments. Viewing can also be done with a binocular or triocular tube. Lenses and eyepieces are not included in the scope of delivery.

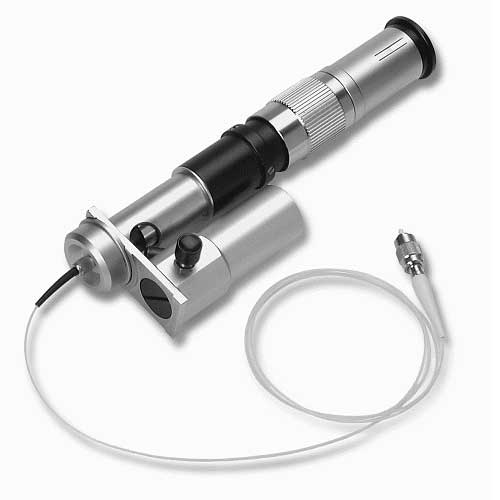

POCKET MEASURING MICROSCOPE FOR FIBER OPTIC CONNECTOR CONTROL

Item No. 21303

Technical specifications:
Execution: Painted matt black, adjustment units matt chrome-plated
Dimensions (BHT): 40 x 170 x 28
Enlargement: 200 times
Weight: 380 gr.
Power supply: NiMH-Akku, 100 mAh

Details

Item No. 21303

Fiber optic pocket measuring microscope with 2.5mm adapter



Item No. 21706

Fiber optic pocket microscope with 2.5mm adapter and case





Description

This microscope is specially designed for viewing polishing surfaces on fiber optic connectors. The adapter supplied as standard has a receptacle for plugs with a diameter of 2.5 mm. The 200-fold magnification is sufficient for on-site assembly of fiber optic connectors. The battery-operated LED lighting, which guarantees a continuous operating time of approx. 8 hours, is equipped with a plug-in power supply with a charging function. The fiber optic plug adapter can be exchanged for customer-specific receptacles. The microscope is supplied with the 2.5 mm mounting adapter.

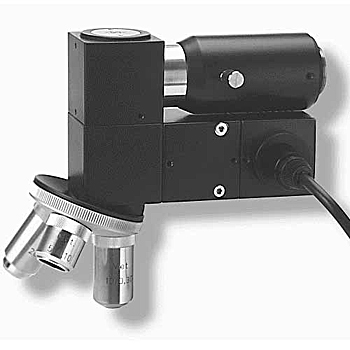

INCIDENT LIGHT SYSTEM MICROSCOPE ALSM 40

Item No. 21533


Technical specifications:

Dimensions basic microscope: 120 x 80 x 40 mm
Divider Cube: 50/50 %
Lens thread: DIN IW 20.2 x 36 gn
Lens construction length: 45 mm
Weight: 540 gm

Details

Item No.

Basic microscope without objectives, with divider, colimator, 90 ° deflection and eyepiece socket







available system parts:





Item No. 21864

Halogen lighting 12V, 10W



Item No. 21736

90 ° deflection



Item No. 21728

Divider attachment 50/50



Item No. 21740

Collimator with iris cover



Item No. 21729

Eyepiece support



Item No. 21812

C-mount camera adapter with measuring eyepiece holder



Description

This reflected light microscope tube is specially designed for attachment to machines or devices. If focusing is necessary, our 60 mm roller conveyor guides are used here.
The basic microscope consists of the dividing cube, a collimator and a lamp. The reflected light metal lenses can be installed directly in the splitter cube or via an objective nosepiece.
The colimator is available with a fixed diaphragm, iris diaphragm and also as a polarizer. The standard lighting consists of a white light LED with an operating voltage of 12V. However, it can also be replaced by a halogen bulb lighting of 6V or 12V and a power of 10 W or 20 W. The image output can be positioned in all directions, and the connection of cameras, eyepieces and all other imaging components is just as flexible.

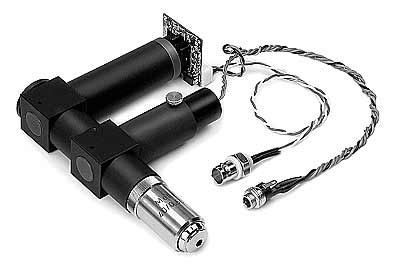

INCIDENT LIGHT SYSTEM MICROSCOPE ALSM 25

Item No. 21621

Technical specifications:
Dimensions basic microscope: 90 x 90 x 25 mm
Divider Cube: 50/50 %
Lens thread: DIN IW 20.2 x 36 gn
Lens construction length: 45 mm
Weight: 220 gm

Details

Item No. 21621

Basic microscope without objectives, with splitter attachment, colimator, 90 ° deflection and CCD board camera







available system parts:





Item No. 21621

Microscope with 12V LED lighting and 1/3 "CCD camera. Without lens.

Item No. 21025

Lens adapter with focussing option through fine thread adjustment

Item No. 21219

Divider attachment 50/50



Item No. 21926

Collimator with iris cover



Item No. 21539

Eyepiece support



Item No. 21527

Camera adapter C-Mount

Art.-Nr.:21918

Housing for CCD board camera



Description

This compact reflected light system microscope is designed for installation in machines or devices where space is limited. If focusing is necessary, the lens adapter with fine thread adjustment can be attached. Incident light metal lenses can be screwed in directly.
The lighting is faded in via a splitter prism with 50% mirroring. The white light LED is designed for an operating voltage of 12V as standard, but can be changed according to customer requirements. The collimator is available with a fixed diaphragm or an iris diaphragm. The image output, angled by 90 °, can be positioned in all directions. The connection of cameras, eyepieces and all other imaging components is just as flexible.

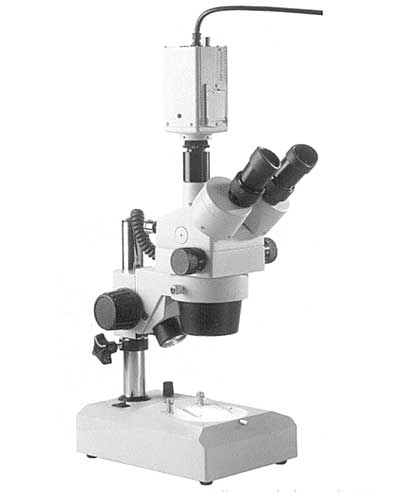

STEREO MICROSCOPE FOR RESEARCH AND LABORATORY

Item No. 21146 triocular

Technical specifications:
Tripod height: 180 mm
Weight: 3900 gm
Total height: 390 mm
Enlargement: 6.5 - 45x with 10x eyepiece
Facial field: 31 - 4,4 mm

Optical equipment:
Eyepieces: 10x wide field (pair), also for glasses wearers
Lens: Zoom lens 0.65x - 4.5x

Details

Included in packaging:





Dust cover





Styropor container











Available Accessories:





Art.No.21099

Cold light lighting 100W, 230V, two-armed



Art.No.21896

C-Mount Adapter 96% bei ½"



Art.No.21243

C-mount adapter with measuring eyepiece holder



Art.No.21321

Camera adapter C-Mount-T2





Description

Triocular angled viewing angle 45 ° with double-sided diopter adjustment and an adjustable interpupillary distance of 50-80mm.
Pair of eyepieces with eyecups. Zoom lens with a magnification factor of 0.65x - 4.5x. When the camera tube is switched on, the microscope image is also visible via an eyepiece. 5W fluorescent lamp built into the base for transmitted light with 6500 ° Kelvin. Incident light 6V, 10W halogen lighting with daylight filter.
Designed for 230V mains voltage with removable mains cable.
